Gardner Denver
Rotary Air Station
The Gardner Denver Model L15 (20 HP) and Model L22 (30 HP) Air Station represent the pinnacle of industrial air compression solutions, engineered to maximize operational efficiency and minimize cost of ownership.
These premium turnkey systems integrate Gardner Denver’s proven rotary screw air compressor technology into a comprehensive, single-skid configuration that eliminates installation complexity while delivering immediate productivity gains. Each unit features a precision-engineered fixed speed rotary air compressor seamlessly coupled with a horizontal receiver tank, advanced refrigerated air dryer, and high-performance coalescing filter—all factory-assembled and tested for optimal performance, installed and managed locally by Arizona Pneumatic.
Ready To Take The Next Step? Speak With Our Team Today.

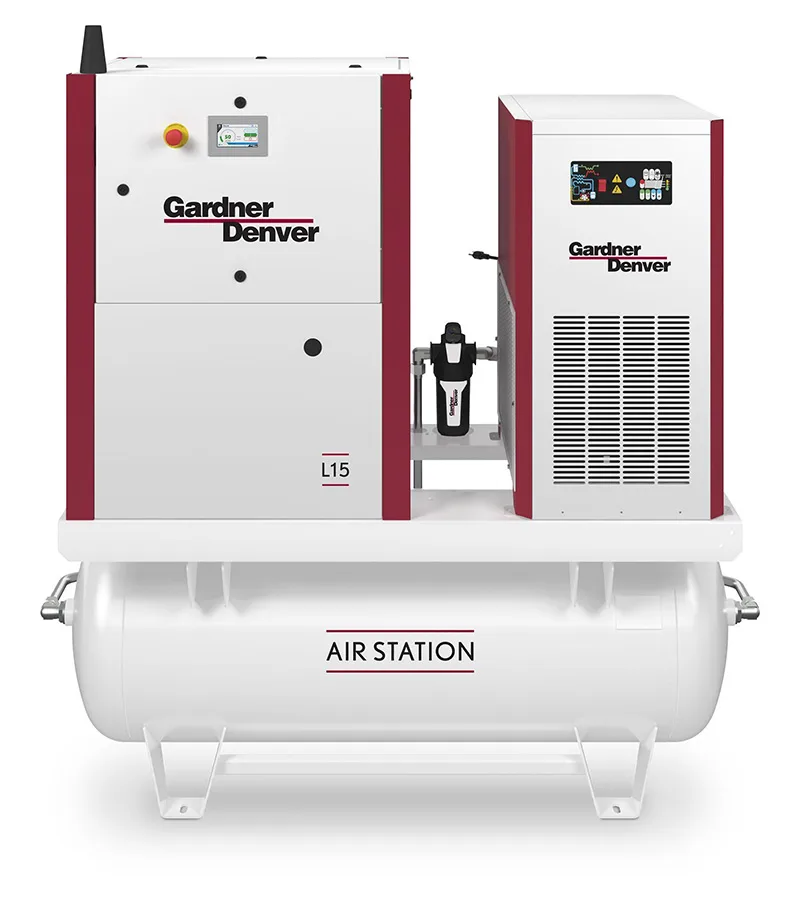

Model L15 (20 HP) – IN STOCK
PACKAGE INCLUDES:
TOTAL WITH TERM COVERAGE:
3-Year: $28,795.94
4-Year: $34,614.94
5-Year: $40,196.94
6-Year: $47,390.94
7-Year: $54,446.94
- Available for delivery typically within 24 Hours
- 20 HP Flow rates: 80.8 CFM at 130 PSIG (68°F Ambient, 14.5 PSIA)
- Stock Unit Voltage: 460 Volt, 3 Phase (Alternate Voltages Available for Special Order)
- Quiet enclosure design (73-74 dB)
- GD Governor™ microprocessor with ICONN proactive fault and alarm notification
- Horizontal 120-gallon ASME receiver tank with Auto Tank Drain
- Mounted refrigerated dryer with bypass piping (120 Volt, Single Phase)
- ISO 8573-1 Class 5-6 Dew Point
- Mounted coalescing filter
- Condensate management system included
- Compact footprint: 74.8″L × 35″D × 76.3″H, 1701 lbs.

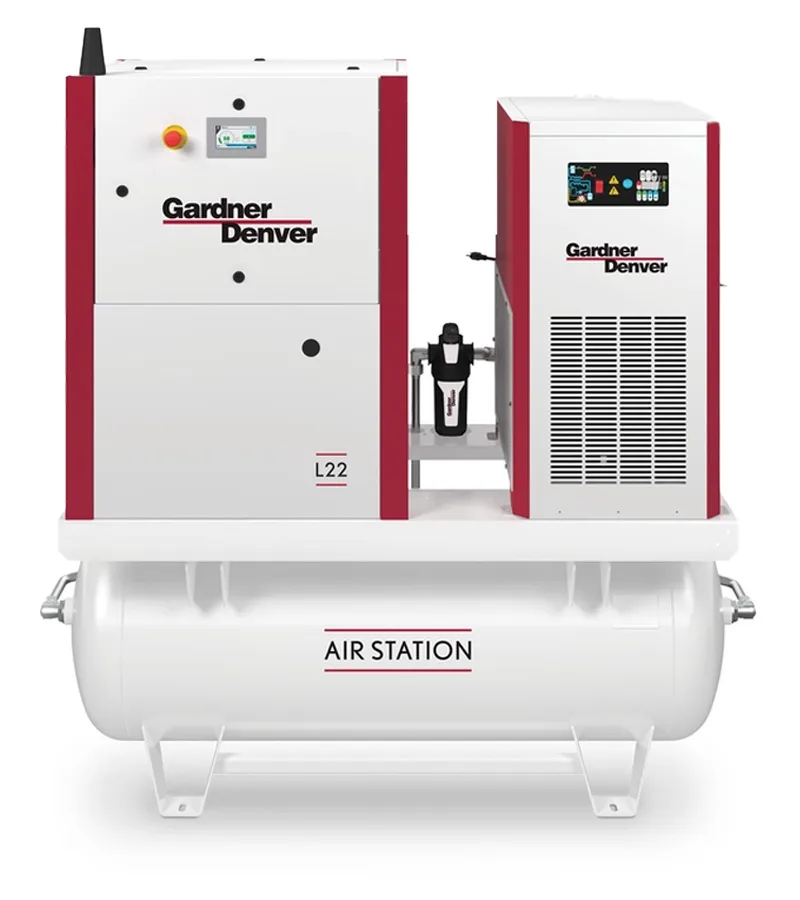

Model L22 (30 HP) – IN STOCK
PACKAGE INCLUDES:
TOTAL WITH TERM COVERAGE:
3-Year: $31,486.44
4-Year: $37,305.44
5-Year: $42,887.44
6-Year: $50,081.44
7-Year: $57, 137.44
- Available for delivery typically within 24 Hours
- 30 HP flow rate 117.2 CCFM at 130 PSIG (68°F Ambient, 14.5 PSIA)
- Stock Unit Voltage: 460 Volt, 3 Phase (Alternate Voltages Available for Special Order)
- Quiet enclosure design (73-74 dB)
- GD Governor™ microprocessor with ICONN proactive fault and alarm notification
- Horizontal 120-gallon ASME receiver tank with Auto Tank Drain
- Mounted refrigerated dryer with bypass piping (120 Volt, Single Phase)
- ISO 8573-1 Class 5-6 Dew Point
- Mounted coalescing filter
- Condensate management system included
- Compact footprint: 74.8″L × 35″D × 76.3″H, 1701 lbs.
SCOPE OF WORK:
Our comprehensive installation and commissioning service includes:
- Gardner Denver Air Station and oil/water separator installation.
- Factory-authorized startup.
- Installation of compressed aluminum air piping shall not exceed 20 linear feet.
- Electrical whip connection between fused/breaker disconnect and air compressor included.
PLEASE NOTE:
To ensure a smooth installation, please note the following customer responsibilities:
- Provide an NEC-sized electrical disconnect with appropriate fuse and wire protection.
- Typical 460 Volt, 3 Phase Protection Time Delay Fuse Rating Sizing.
- Confirm with Licensed Electrician: Typical Rating: (20 HP 40 Amps), (30 HP 60 Amps)
- Provide a separate 120 Volt, single-phase power supply for the refrigerated air dryer.
- Customer supplied forklift or clear, solid surface, accessible path for pallet jack.
- Gardner Denver Rotary Air Station Package only available in Arizona and Nevada
- Delivery Included within 30 Miles of Arizona Pneumatic or Nevada Pneumatic**
- Maintenance Based on Maximum of 4000 Annual Hours of Operation**
- Additional Installation Requirements Billed Straight Time and Material**
- Semi-Annual Service and Major Component Coverage Included* (See Program for Exclusions)
- Standard Major Component Coverage Term Lengths: Three to Seven Years
- Standard Semi-Annual Pricing based on within 30 miles of Arizona Pneumatic or Nevada Pneumatic
- Break Fix Charges NOT included*
- Break Fix Labor Contracted Rate for Major Component Coverage $185.00 Per Hour (Minimum 2 Hours)
- Break Fix Trip Charge $75.00 per Visit
- See Arizona Pneumatic Standard Terms and Conditions for More Information
- Payment in Full by Check or Wire Transfer. 3% Convenience Fee for Credit Card Payment
- Applicable taxes not included
*Additional Charges Apply
**Additional Charges will Apply for Overage
