ARIZONA PNEUMATIC
L75 100 HP Base-Mounted
Product Title:

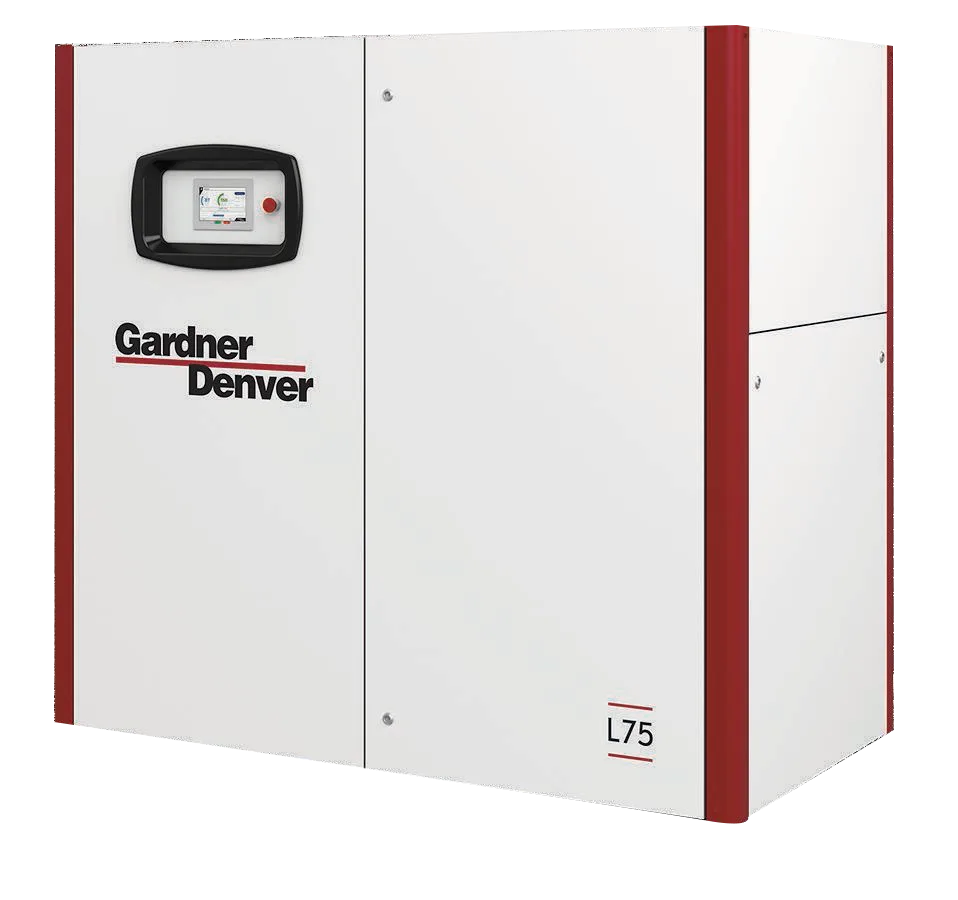

Gardner Denver L-Series L75 100 HP Rotary Screw Air Compressor – Base-mounted, Air-Cooled
Product Category:
Rotary Screw Air Compressors
Availability:
In stock in Tempe, AZ
Product Description:
The Gardner Denver L75 is a 100 HP lubricated rotary screw compressor that delivers 422 ACFM at 130 psig. It shares the L55’s footprint, so plants get around 27% more air without requiring any additional floor space. A direct-gear drive, premium-efficiency motor, and touchscreen governor controller equip it for continuous, full-shift duty.
The L75 is designed for larger plants with multiple shifts or high-demand processes, and it can serve as the lead machine in a sequenced multi-compressor system. Arizona Pneumatic stocks the L75 in Tempe, with each unit configured for 130 psig and 460V three-phase and filled with AEON 9000 SP lubricant.
- Lower energy costs from a premium-efficiency motor and gear drive with no belt losses
- Less maintenance and downtime with no belts to tension or replace
- More air per square foot, in the same footprint as the 75 HP L55
- Rated for ambient temperatures up to 113°F, suited to Southwest summers
- In stock locally for fast delivery
- Direct-gear drive, oil-flooded, single-stage rotary screw airend
- TEFC IP55 premium-efficiency (IE3) main motor
- Mounted, wired wye-delta starter (reduced inrush current)
- GD Governor microprocessor controller with touchscreen and built-in data logging
- Multi-compressor sequencing and second pressure band for lead/lag operation
- Load/no-load control and timed shutdown
- AEON 9000 SP synthetic lubricant
- Hard-piped air system with Viton Victaulic couplings (reduces leak points)
- Two-stage air filter and air/oil separation system; integrated spin-on oil filter
- Integrated thermostatic mixing valve (keeps oil at proper temperature)
- CRN- and ASME-rated aftercooler; moisture separator (shipped loose)
- Quiet enclosure; UL-listed electrical components, Type 1 enclosure
- Metal fabrication and machining
- Plastics and injection molding
- Food and beverage processing
- Packaging and bottling
- Automotive and aerospace component manufacturing
- Mining, aggregate, and concrete plants
